Micro-Hole Machining for Semiconductor Components: What to Do When Spindle Speed Is Not Enough
How a 4× Speed-Increasing Live Tool Holder Can Help
In recent years, rapid growth in AI computing, high-performance computing (HPC), and advanced packaging has continued to drive demand for semiconductor component machining.
Technavio forecasts that the global semiconductor advanced packaging market will grow at a CAGR of approximately 9.4% from 2025 to 2030. Mordor Intelligence estimates that the advanced packaging market will grow from approximately USD 5.746 billion in 2026 to USD 9.011 billion by 2031.
For CNC turning operations, this growth also means increasing demand for semiconductor components, precision connectors, and other parts with stringent machining accuracy requirements. These components often require micro-hole drilling and milling, where machine spindle speed can quickly become a limiting factor.
Why Spindle Speed Becomes a Bottleneck in Micro-Hole Machining
CNC lathe spindle speeds typically range from 6,000 to 8,000 RPM. This is sufficient for most conventional machining operations, but when drilling or milling holes smaller than 1 mm, or machining parts with demanding surface finish requirements, insufficient speed can directly affect machining results.
- Tool runout: When spindle speed does not meet the cutting requirements, the tool may become unstable inside the hole, affecting hole position accuracy.
- Increased risk of tool wear and breakage: Improper cutting conditions can accelerate tool wear and even cause tool breakage, resulting in additional downtime and rework costs.
- Difficulty achieving the required surface finish: Insufficient speed results in lower cutting speed, making it more difficult to maintain consistent hole-wall quality. This may affect the yield of downstream processes such as plating and packaging.
For this reason, the ability to deliver stable high-speed rotation at the tool holder is one of the key factors affecting both productivity and machining quality in micro-hole applications.
How a 4× Speed-Increasing Live Tool Holder Addresses the Problem

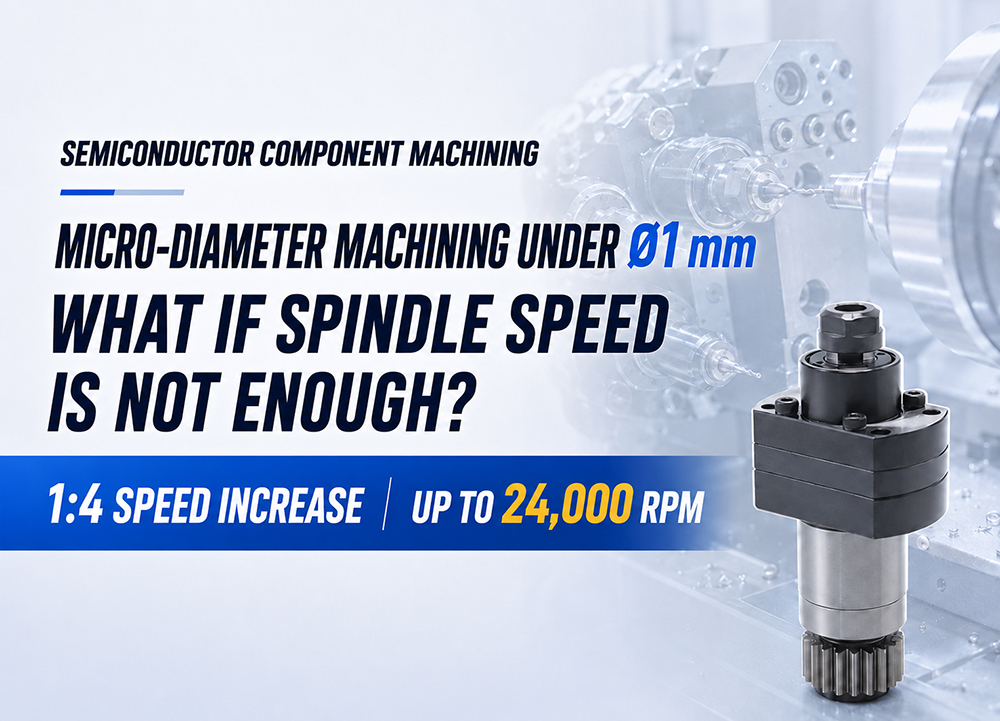

Song Jia’s 4× speed-increasing live tool holder is designed for drilling and milling applications. It uses specially designed precision gears together with German-made bearings and other key components to increase output speed to more than four times that of a typical CNC lathe spindle, with a maximum speed of up to 24,000 RPM and a 1:4 speed ratio.
One important point is that the CNC lathe must have a compatible drive system and mounting interface to provide the power and mechanical interface required by the live tool holder. The holder cannot simply be installed on every CNC lathe.
If the existing machine already has the required system, adding a speed-increasing live tool holder can generally involve lower cost and a lower implementation barrier than replacing the entire lathe spindle or purchasing a separate high-speed machining center.
Applications
The 4× speed-increasing live tool holder is suitable for drilling and milling semiconductor components, precision connectors, and other parts requiring high hole accuracy.
It can also be used in a wide range of precision machining applications that require higher rotational speeds and multi-axis machining. Its use is not limited to a single industry.
Actual suitability should be evaluated based on factors including:
- Workpiece material
- Hole diameter range
- Machine compatibility
- Availability of a compatible drive system and mounting interface
Selection and Implementation Recommendations
Hole diameter, depth-to-diameter ratio, and material characteristics can all affect actual machining performance.
Before selecting a live tool holder, machine shops should prepare the following information to help determine the appropriate holder model and machining conditions:
- Workpiece material and hardness
- Required hole diameter range and hole depth
- Current machine brand and model
- Whether the machine has a compatible drive system and mounting interface
- Current machining issues, such as runout, tool breakage, or unacceptable surface finish
The Song Jia technical team can use this information to help evaluate the appropriate live tool holder specifications and provide application recommendations.
Frequently Asked Questions
Q1: Is the 4× speed-increasing live tool holder only suitable for semiconductor component machining?
No. The 4× speed-increasing live tool holder is a general-purpose high-speed live tool holder. Semiconductor components are only one of its applications. It can also be used for other precision parts requiring high rotational speeds and micro-hole machining.
Q2: Do I need to replace my entire CNC lathe to use a 4× speed-increasing live tool holder?
Not necessarily. However, the machine must have a compatible drive system and mounting interface for the live tool holder to be installed and operate properly.
If your existing machine does not have these features, we recommend checking machine compatibility with the Song Jia technical team to determine whether additional equipment or upgrades are required.
Q3: What machining operations can be performed with a 4× speed-increasing live tool holder?
The 4× speed-increasing live tool holder is primarily designed for drilling and milling, especially micro-hole applications involving small diameters and high accuracy requirements.
Q4: Will increasing the speed shorten tool life?
Not necessarily. The relationship between rotational speed and tool life depends on whether the overall cutting conditions are properly matched, including feed rate, cooling method, and tool material.
Higher speed does not automatically mean shorter tool life. The appropriate machining parameters should be evaluated according to the actual workpiece and cutting conditions to achieve the right balance between productivity and tool life.
Need Help Selecting the Right Live Tool Holder?
Send us your part drawing, material, required hole diameter and depth, and current CNC machine information.
The Song Jia technical team can help evaluate a suitable live tool holder solution for your application.
Sources: Technavio, Semiconductor Advanced Packaging Market Growth Analysis 2026–2030; Mordor Intelligence, Advanced Packaging Market Size, Share Analysis & Growth Report 2031.
Product specifications, including speed ratio, maximum speed, and clamping method, are based on product information currently available on the Song Jia official website.
