鋸片柄
適用廠牌 : 鋸片柄
- 鋸片柄

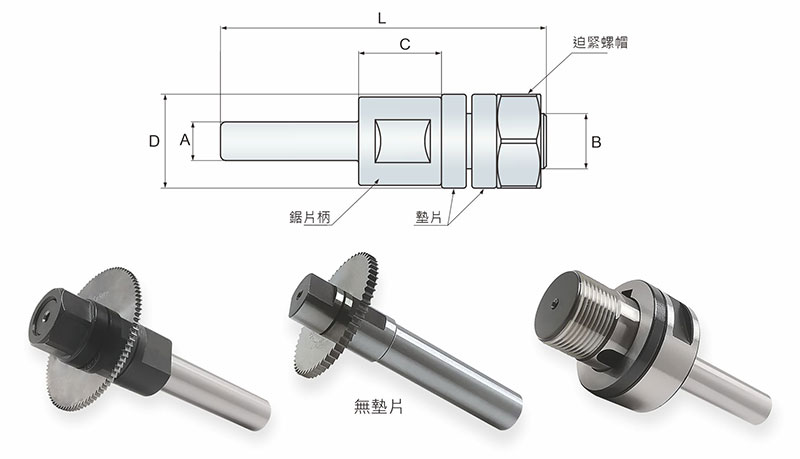

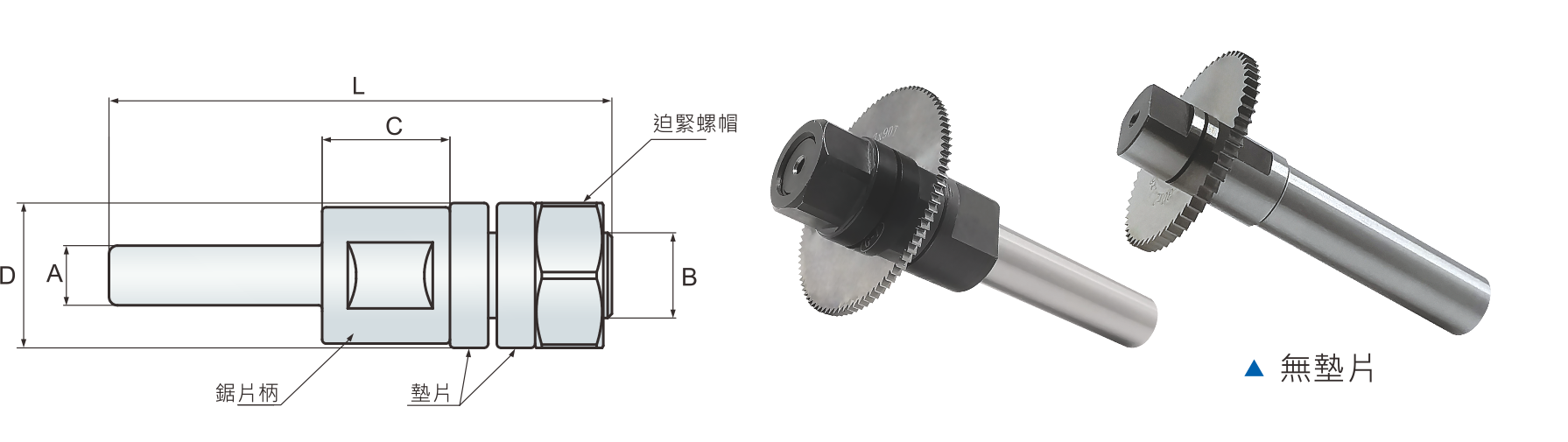

尺寸表
| 編號 | A | B | C | D | L |
|---|---|---|---|---|---|
| IR050050048 | 5 | 5 | 4.5 | 7 | 48 |
| IR060050048 | 6 | 5 | 4.5 | 7 | 48 |
| IR070050060 | 7 | 5 | 4.5 | 13 | 60 |
| IR070060060 | 7 | 6 | 4.5 | 13 | 60 |
| IR100060090 | 10 | 6 | 14 | 13 | 90 |
| IR100080060 | 10 | 8 | 4.5 | 13 | 60 |

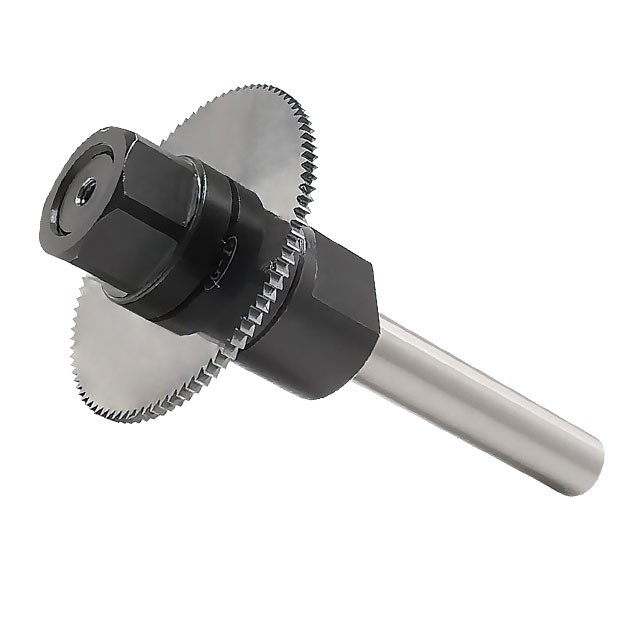

| IR100127090 | 10 | 12.7 | 15 | 20 | 90 |
| IR127127090 | 12.7 | 12.7 | 15 | 20 | 90 |
| IR130254095 | 13 | 25.4 | 15 | 40 | 95 |

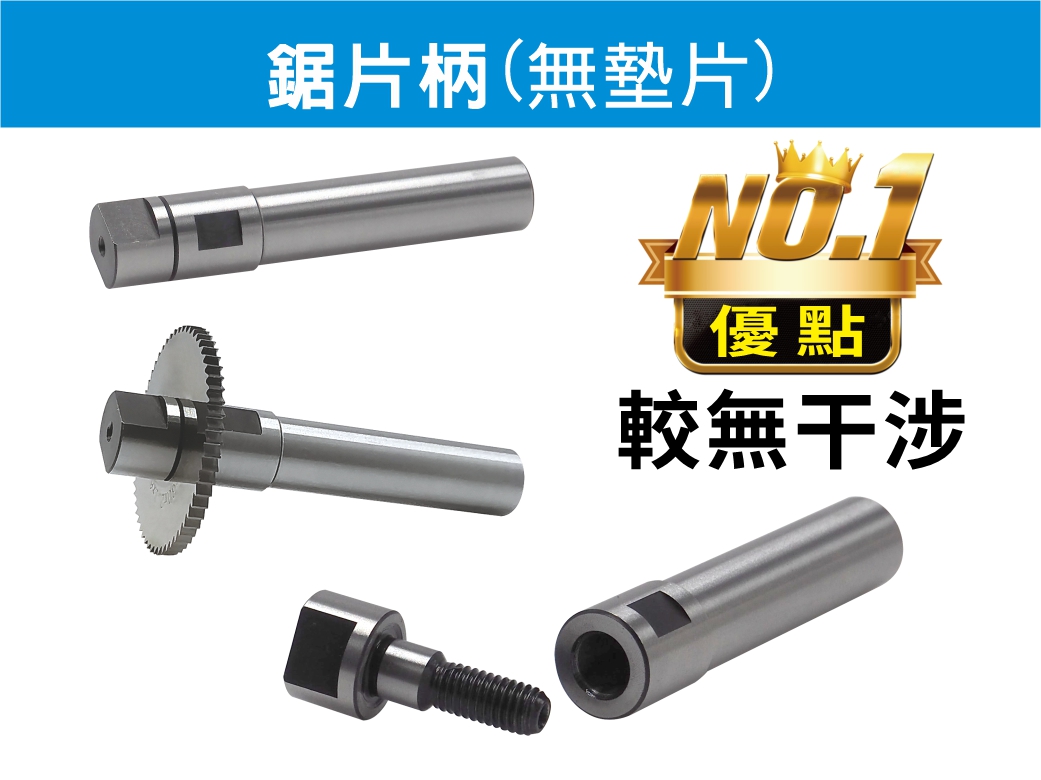

| IR100060060R 無墊片 | 10 | 6 | 12 | 11 | 60 |
| IR100060060L 無墊片 | 10 | 6 | 12 | 11 | 60 |
| IR100127090R 無墊片 | 10 | 12.7 | 15 | 20 | 90 |
| IR127127090R 無墊片 | 12.7 | 12.7 | 15 | 20 | 90 |

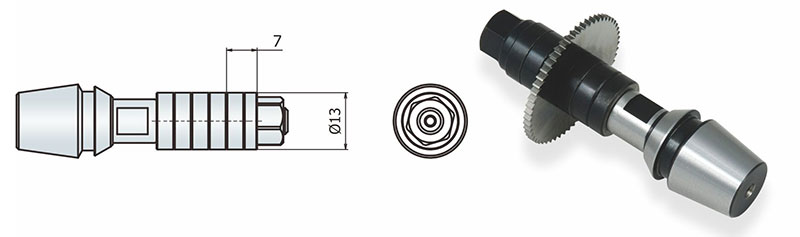

尺寸表
| 編號 | 鋸片孔徑 | 筒夾螺帽 |
|---|---|---|
| IR110050065 | 5 | ER11 |
| IR110060065 | 6 | ER11 |
| IR160050065 | 5 | ER16 |
| IR160060065 | 6 | ER16 |
