槍鑽鑽孔軸
適用廠牌 : 攻牙軸 /鑽孔軸/ ER筒夾/攻牙筒夾
- 鑽孔軸
尺寸表

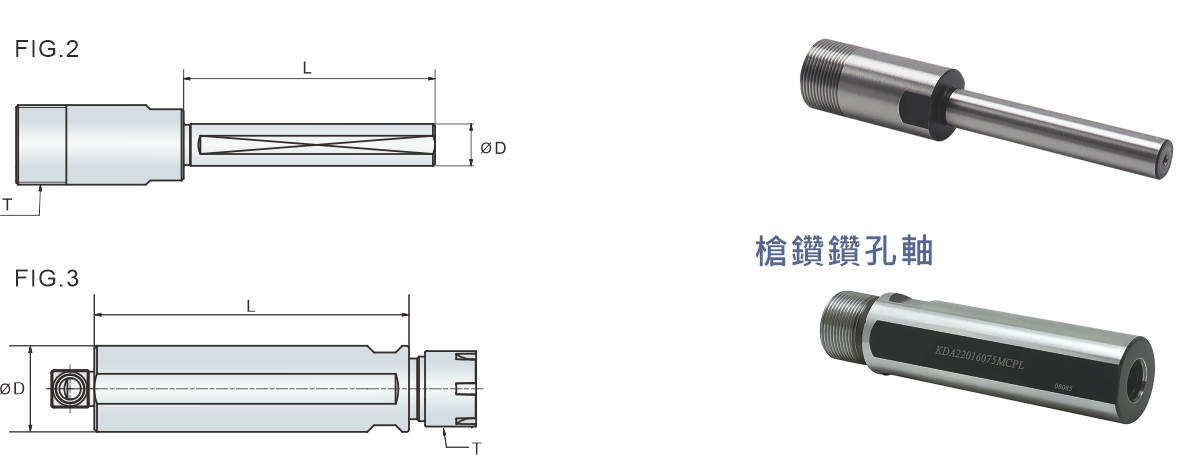

| 編號 | 品名 | FIG | D(柄徑) | T(筒夾) | L(不含牙長) | 螺帽 | 出水 |
|---|---|---|---|---|---|---|---|
| KDA16016100MCF | 槍鑽鑽孔軸 | 2,3 | 16 | 16 | 100 | M | ▲ |
| KDA19016070MCF | 槍鑽鑽孔軸 | 3 | 19.05 | 16 | 70 | M | ▲ |
| KDA20011070ACF | 槍鑽鑽孔軸 | 3 | 20 | 11 | 70 | A | ▲ |
| KDA20016050MCF | 槍鑽鑽孔軸 | 3 | 20 | 16 | 50 | M | ▲ |
| KDA20016070MCF | 槍鑽鑽孔軸 | 3 | 20 | 16 | 70 | M | ▲ |
| KDA22016050MCD | 槍鑽鑽孔軸 加大型 | 3 | 22 | 16 | 50 | M | ▲ |

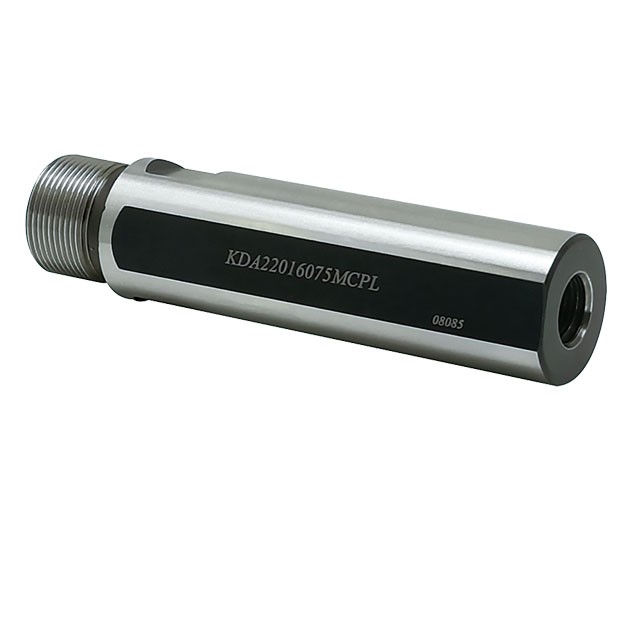

| KDA22016075MCD | 槍鑽鑽孔軸 加大型 | 3 | 22 | 16 | 75 | M | ▲ |
| KDA22016100MCF | 槍鑽鑽孔軸 | 3 | 22 | 16 | 100 | M | ▲ |
| KDA22016117MCF | 槍鑽鑽孔軸 | 3 | 22 | 16 | 117 | M | ▲ |
| KDA22020110MCF | 槍鑽鑽孔軸 | 3 | 22 | 20 | 110 | M | ▲ |
| KDA23016075MCD | 槍鑽鑽孔軸 | 3 | 23 | 16 | 75 | M | ▲ |
| KDA25011070ACF | 槍鑽鑽孔軸 | 3 | 25 | 11 | 70 | A | ▲ |
| KDA25016050MCF | 槍鑽鑽孔軸 | 3 | 25 | 16 | 50 | M | ▲ |
| KDA25016080MCD | 槍鑽鑽孔軸 加大型 | 3 | 25 | 16 | 80 | M | ▲ |
| KDA25016100MCF | 槍鑽鑽孔軸 | 3 | 25 | 16 | 100 | M | ▲ |
| KDA25020060ACF | 槍鑽鑽孔軸 | 3 | 25 | 20 | 60 | A | ▲ |
| KDA25020060MCF | 槍鑽鑽孔軸 | 3 | 25 | 20 | 60 | M | ▲ |
| KDA25020100ACF | 槍鑽鑽孔軸 | 3 | 25 | 20 | 100 | A | ▲ |
| KDA25020100MCF | 槍鑽鑽孔軸 | 3 | 25 | 20 | 100 | M | ▲ |
| KDA25416070MCF | 槍鑽鑽孔軸 | 3 | 25.4 | 16 | 70 | M | ▲ |
| KDA25416100MCF | 槍鑽鑽孔軸 | 3 | 25.4 | 16 | 100 | M | ▲ |
| KDA25420070MCF | 槍鑽鑽孔軸 | 3 | 25.4 | 20 | 70 | M | ▲ |
| KDA32020080MCF | 槍鑽鑽孔軸 | 3 | 32 | 20 | 80 | M | ▲ |
| KDA32020100MCF | 槍鑽鑽孔軸 | 3 | 32 | 20 | 100 | M | ▲ |
| KDA32020120MCF | 槍鑽鑽孔軸 | 3 | 32 | 20 | 120 | M | ▲ |
