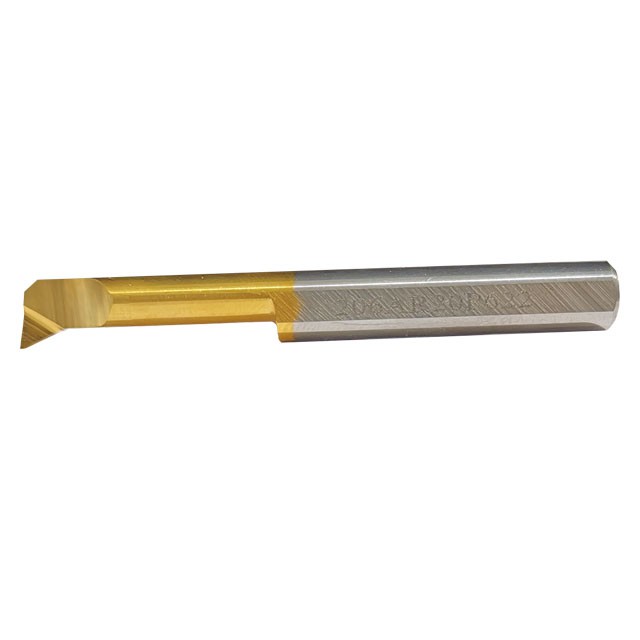

P系列內孔修刀

bore tool-p series



尺寸表

D 編號 F L1 R H H1 L
3 TGG203AR20P31050 2.9 10 0.2 0.6 2.7 50
3 TGG203AR40P31050 2.9 10 0.4 0.6 2.7 50
4 TGG204AR20P41550 3.9 15 0.2 0.8 3.7 50
4 TGG204AR40P41550 3.9 15 0.4 0.8 3.7 50
5 TGG205AR20P52250 4.9 22 0.2 1.0 4.7 50
5 TGG205AR40P52250 4.9 22 0.4 1.0 4.7 50
6 TGG206AR20P62250 5.9 22 0.2 1.5 5.7 50
6 TGG206AR40P62250 5.9 22 0.4 1.5 5.7 50
8 TGG208AR20P82260 7.9 22 0.2 2.0 7.7 60
8 TGG203AR40P82260 7.9 22 0.4 2.0 7.7 60
